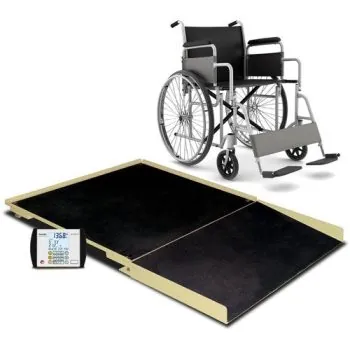

DETECTO’s low-profile portable wheelchair scale line offers you four different models to choose from based on whether you need to weigh patients in regular size or bariatric wheelchairs and whether you need basic weighing functions or more complex patient measurement operations.

The platform is only 2.2 in / 5.6 cm high for easy patient accessibility and comfort while weighing either standing or in a wheelchair. With a high 1,000 lb / 450 kg capacity, the scales are capable of measuring patients of virtually any weight possible.

For single-pass weighing to save time, choose the models 6500 or BRW1000 which utilize the MedVue indicator. You can enjoy the time-saving benefits of these scales by using the convenient pushbutton or keypad tare which allows you to remove the wheelchair weight all in one pass.

• Two-way ramps for accessibility from both sides
• Flexible cable remote display extends up to 14 ft / 4.2 m from scale to indicator
• Quick and easy mobility for transport or vertical storage
• Optional Wi-Fi connectivity for EMR/EHR (models 6500 and BRW1000)
• Battery power for easy mobility (or use with optional AC adapter)
• Black rubber mat included on the scale platform and ramp for superior traction

FLEXIBLE WIRED WEIGHT DISPLAY

Since the display is connected to the scale by a long coiled cable that extends up to 14 ft / 4.2 m, it can be positioned where the healthcare professional can most easily read the results.

By using the versatile mounting bracket that comes with each scale, you may permanently mount the indicator on a wall for long-term static use or set it on a tabletop or desk for more mobile type weighing.

YOUR CHOICE OF DIGITAL KEYPAD WEIGHING FUNCTIONS

• Models 6500/BRW1000 – The MedVue® multifunctional indicator with alphanumeric keypad and RS232 and USB ports (optional Wi-Fi and Welch Allyn connectivity) displays Height, Weight, and Body Mass Index onscreen simultaneously. Capable of 14-digital alphanumeric patient ID entries and 99 stored wheelchair tare weights. Displays in four languages (English, Spanish, French, and German).

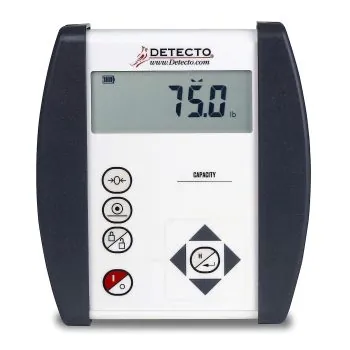

• Models 6400/6600 – Model 750 indicator with easy to-use, basic weighing functions. BMI calculation, RS232 serial port, and big bold LCD digits

INCLUDES VERSATILE INDICATOR MOUNTING BRACKETS

• The MedVues® ballmount swivel bracket for the back of the indicator allows wall-mount or mobile tabletop weighing with adjustable viewing.
• The 750 mounting bracket snaps onto the back of the indicator for wall-mount or mobile tabletop weighing.

Features

Accommodating new EXTRA-WIDE wheelchairs, Detecto’s BRW1000 provides everything required for weighing bariatric patients. For extended patient comfort, the BRW1000 can store the weight of the chair, allowing clinical staff to simply roll the patient on the scale for quick and easy weighing. Detecto’s BRW1000 provides comfort for the patient and saves valuable time in busy healthcare facilities. Heavy-duty construction, a large rubber deck safety plate platform with an integral ramp, and the 1,000 lb capacity make this the perfect scale for weighing patients in manual or power wheelchairs, dialysis patients, or walk-ons.

Light in Weight… Heavy in Capacity

Features & Specs:

• EMR-ready serial connectivity
• Pushbutton and keypad tare
• Body Mass Index (BMI) calculation
• Selectable key lockout
• ID storage with and without a known tare weight
• Capacity: 1000 lb x 0.5 lb (450 kg x 0.2 kg)
• Platform width: 40 inches (accommodates bariatric wheelchairs)
• Display: 0.7-inch high contrast LCD for wall or table mount
• Power source: 6 C alkaline or nickel-cadmium cells (not included) or optional AC adapter
• Includes the Detecto 758C indicator
• The BRW1000s integral handles make it easy to lift and lower into position. Built-in wheels permit the scale to be rolled anywhere it’s needed.
• The extra-wide platform easily accommodates bariatric wheelchairs up to 40 wide.

Detecto 758C Indicator for Digital Medical Scales

Detecto digital medical scales come standard with the enhanced 758C weight display. The new 758C includes a standard serial port for data output to a printer or a PC-based EMR (electronic medical record) software program. With the new time/date feature, the scale can send the weight, time, date, BMI (Body Mass Index), and height directly to a printer or a PC. New black ABS plastic end caps have been added to the 758C further improving the overall appearance of each scale.

The ability to print or save weight data with the 758C is a real-time saving device for clinics, doctors’ offices, long-term care facilities, and other medical institutions. For example, in long-term care facilities and nursing homes, the assessment of patients’ weight is crucial to reimbursement from Medicare/Medicaid. Monitoring and documenting of weight is also important to renal departments, weight loss clinics, and other specialized departments.

Serial Connectivity Provides:

• Output to Printer — print BMI, weight, time, and date
• Send Data to PC — excellent for medical record keeping

Specs:

• Display: Liquid Crystal, Reflective Type
• Enclosure: Painted Steel
• Keypad: 19 key, color-coded, sealed membrane
• BMI Range: 15.0 to 60.0
• Height Range: 3 to 7 feet (90 to 215 cm)
• Sensitivity: 1.2 µV/d
• Resolution: 5,000 divisions, maximum
• Accuracy: Class III
• Power: 6 “C” size Alkaline or Nickel-Cadmium cells (not included) or optional AC adapter
• Temperature Range: 14 to 104 °F / -10 to 40 °C
